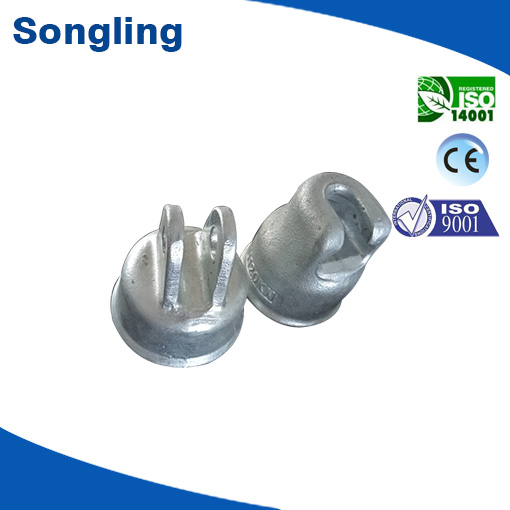

Clevis Type Iron Caps

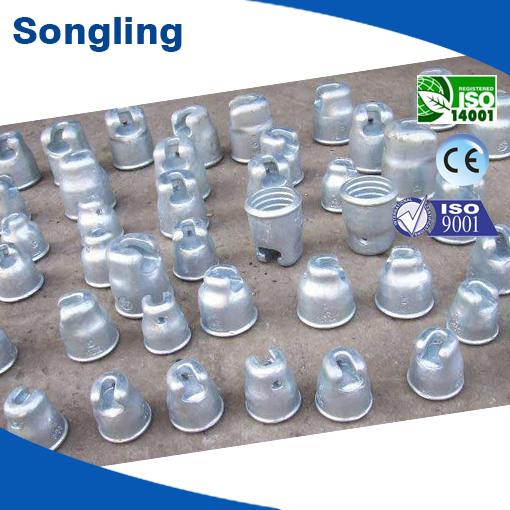

■Songling suspension insulator iron cap

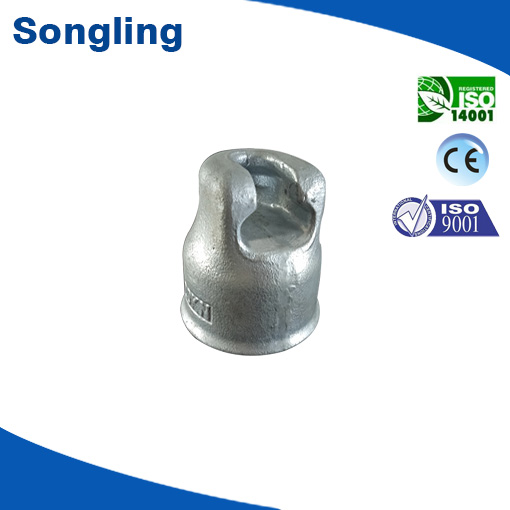

■ Socket caps/Disc insulator caps

High performance of corrosion resistant

※ Caps type:40kn/70kn/80kn/100kn/120kn/134kn/160kn/210kn/240kn/300kn/400kn/550kn

According to client’s drawing requirement production.

Cap Strength lever(kn)

100

120

160

210

300

420

550

Tensile Failure Load(kn)

100

145

155

210

275

385

525

700

※ Material: Ductile iron(QT)

※ Mechanical strength range: From 100kn up to 640~840KN

※ Technology: Sand casting

※ Process: Casting+maching(if need)

※ Surface treatment: Hot dip galvanized according to ASTM A153

※ Quality: Cap's surface without any stomatal sand holes,no flow mark and smooth surface

※ Usage: Accessory for Procelain&Glass insulator used in hign voltage power transmission

※ Trademark: SL or OEM/ODM

---------------------------------------------------------------------------------------------------------------------------------------
